Parent guideBest Car Stereos & Head Units: 2026
2026 Buyer’s Guide · 2 bench-tested, 2 researched and vetted

Best Touchscreen & Floating-Screen Car Stereos

My current touchscreen and floating-screen picks, from a 10.1-inch Pioneer down to a $500-tier HD value JVC, with the fitment, camera, audio, and video tradeoffs spelled out rather than glossed over.

Updated November 2026 4 picks · current models and offers checked Independent recommendations · no paid placements
THE SHORTLIST

Choose the screen around the dash, not the product photo

A big display makes maps, cameras, and menus easier to read. What screen inches won't tell you is whether the thing will work in your car, and a floating panel that looks incredible in a studio shot can sit right in front of a climate control you use every day.

I ranked these by panel quality, control layout, chassis and screen clearance, useful inputs, audio expansion, and the factory-integration path. The Pioneer DMH-WT8000NEX (SPHERA) leads. I had it on my test bench, and its included calibration mic and PURE Autotuning set the EQ and time alignment for your cabin, on a sharp 10.1-inch floating screen. If you don't need the autotuning, the older WT6000NEX has the same 10.1-inch 720p screen for $200 to $400 less while stock lasts. The JVC KW-M795BW is the fixed-screen value choice while it's on clearance, the Sony XAV-AX8500 is the stronger HDMI and camera option, and the Alpine Halo9 iLX-F509 covers a flexible premium install.

Here's the rule of thumb I'd use: measure the space in front of the opening before you fall in love with a screen size. The opening is rarely what stops one of these installs. If you're still deciding what kind of receiver you want at all, the broader decisions live in my Best Car Stereos guide.

Compare my 4 touchscreen picks

Best for ↕ My pick ↕ Screen Size ↕ Head Unit Size ↕ Rating ↕ Buy
Best Overall
Pioneer DMH-WT8000NEX Pioneer DMH-WT8000NEX
10.1 in capacitive, no anti-glare Single-DIN chassis with 10.1-in floating monitor ★★★★½ 4.7 Buy Now $1,099.99 on Amazon
Best Value
JVC KW-M795BW JVC KW-M795BW
6.92 in capacitive anti-glare/anti-fingerprint Double-DIN, 4 5/16-in chassis depth ★★★★½ 4.6 Buy Now $499.00 on Amazon
Best for HDMI & Cameras
Sony XAV-AX8500 Sony XAV-AX8500
10.1″ floating Single-DIN (floating) ★★★★½ 4.6 Buy Now $798.00 on Amazon
Best Premium
Alpine Halo9 iLX-F509 Alpine Halo9 iLX-F509
9″ floating Single-DIN (modular floating screen) ★★★★½ 4.7 Buy Now $1,420.25 on Amazon

CarAudioNow may earn a commission from retailer links. Brands do not influence the recommendations.

METHODOLOGY

How I evaluate touchscreen head units

I compare screen visibility and touch response, everyday usability, audio tuning, inputs, chassis fit, and the factory-integration path. I bench-tested the Pioneer WT8000NEX and the Sony XAV-AX8500, and those findings are labeled as such. For the other two, I lean on manufacturer documentation, firmware and warranty support, and current authorized-retailer validation.

Panel quality

Resolution, glare control, brightness, viewing angle, and touch response matter more than raw screen inches.

Daily controls

I look for a simple home screen, quick access to volume and voice control, and menus that do not require several taps while driving.

Chassis and clearance

Fixed, shallow, and floating receivers solve different problems. A large floating panel must clear the vents, switches, gauges, and shifter.

Inputs and cameras

Camera count, HDMI support, and video outputs vary by model. A large screen does not guarantee the connections a build needs.

Audio and integration

I compare preout voltage, tuning, Maestro support, and the adapters needed to keep factory functions.

BEFORE YOU BUY

Four touchscreen decisions to make first

  1. Fixed or floating? A fixed screen gives the cleanest factory-style finish. A floating screen gets larger without needing a taller opening, but it creates a clearance decision in front of the dash.
  2. How sharp should the panel be? A native 1280 x 720 panel makes maps, camera feeds, and small text clearer. WVGA can still work, but it should come with a packaging or price advantage.
  3. How many cameras and inputs? The WT8000NEX, M795BW, AX8500, and F509 do not have identical camera counts, HDMI, or preout voltage. Check the exact card before planning the system.
  4. Will the car keep its features? Verify the exact interface for steering controls, cameras, the factory amplifier, warning tones, and vehicle settings. Maestro-ready is a compatibility path, not a universal promise.
THE PICKS

My best touchscreen and floating-screen stereos

★ Best Overall A 10.1-inch floating screen that tunes itself, built for iPhone households ★★★★½4.7

Pioneer DMH-WT8000NEX

1-DIN floating 10.1″ · Dolby Atmos via CarPlay · calibration mic

MakePioneer
ModelDMH-WT8000NEX (SPHERA)
Head Unit SizeSingle-DIN chassis with 10.1-in floating monitor
Screen Size10.1 in capacitive, no anti-glare

CarAudioNow may earn a commission from retailer links. Brands do not influence the recommendations.

Why I picked it

The SPHERA is the big-screen receiver I'd point an iPhone owner toward when they want the system tuned without paying someone to do it. I had it on my test bench with a 12-volt supply, a backup camera, the GPS antenna, and a pair of 6½-inch coaxials. That's a bench test, not an install, so I haven't run its autotuning in a car yet. That comes in Part 2.

What sets it apart is PURE Autotuning. You plug the included calibration mic into the A/V jack, and the unit measures your cabin and sets the EQ and time alignment, the same idea as room correction on a good home receiver. It's also the first aftermarket deck that decodes Dolby Atmos, but only through CarPlay from apps that send an Atmos stream, like Apple Music and Audible. Spotify and Android Auto get Pioneer's upmix instead.

The 10.1-inch 1280 x 720 panel rides a standard single-DIN chassis and moves up, down, sideways, and tilts. At its closest, though, it still sits 2¼ inches off the dash, the same class as the Sony AX8500. There's no anti-glare coating, no HDMI input, and the three preout pairs run 4 volts instead of 5. Choose Standard or Network mode carefully during setup, because Pioneer told me switching later means a factory reset and redoing your tuning. At around $1,300, it's built for iPhone households. Skip it if you're on Android, need HDMI, or want to hand-tune a parametric EQ.

MakePioneer
ModelDMH-WT8000NEX (SPHERA)
Head Unit SizeSingle-DIN chassis with 10.1-in floating monitor
Screen Size10.1 in capacitive, no anti-glare
Display Resolution1280 x 720
Smartphone IntegrationWired/wireless Apple CarPlay and Android Auto
Preamp Voltage4V, front/rear/sub
Audio TuningPURE Autotuning with calibration mic; Standard or 3-way Network mode
Camera Inputs2 (backup with guidelines + switchable composite)
Media / ExpansionDolby Atmos via CarPlay (select apps), USB FLAC/WAV to 24-bit/192 kHz (downsampled), 3.5 mm A/V input; no HDMI
Typical PriceAround $1,100 to $1,300
Reasons to buy
  • PURE Autotuning and the included calibration mic set EQ and time alignment for your cabin.
  • Real Dolby Atmos decoding through wired or wireless CarPlay from Apple Music, Audible, and other Atmos apps.
  • 10.1-inch 1280 x 720 screen on a standard single-DIN chassis that fits more dashes than double-DIN floaters.
  • Network mode turns the deck into a three-way active crossover with slopes to 36 dB per octave.
  • Physical volume and mute buttons, plus PxLink for phone remote control, wallpaper, and firmware updates.
Reasons not to buy
  • No HDMI input, so video comes over USB or the 3.5 mm A/V jack only.
  • Three 4-volt preout pairs, where Sony's and Kenwood's premium decks give you 5 volts.
  • No anti-glare coating, and the screen still stands 2¼ inches off the dash at its closest.
  • Around $1,300, and Android or Spotify users can't use the Atmos they're paying for.
★ Best Value A sharp 720p fixed screen with HDMI, while clearance stock lasts ★★★★½4.6
JVC KW-M795BW JVC KW-M795BW JVC KW-M795BW JVC KW-M795BW

JVC KW-M795BW

6.92-inch 720p screen · HDMI · HD camera · wireless CarPlay/AA

MakeJVC
ModelKW-M795BW
Head Unit SizeDouble-DIN, 4 5/16-in chassis depth
Screen Size6.92 in capacitive anti-glare/anti-fingerprint

CarAudioNow may earn a commission from retailer links. Brands do not influence the recommendations.

Why I picked it

I picked the KW-M795BW because it puts the screen features that actually improve video into a conventional double-DIN receiver at around $500. The 6.92-inch panel is a native 1280 by 720 capacitive display with anti-glare and anti-fingerprint treatment, not another 800 by 480 screen wearing an “HD” sticker. It takes an HDMI source and a compatible 720p rear camera, plus a second switchable A/V or camera input. That makes it a fresher recommendation than the older disc-based Pioneer AVH-W4500NEX.

Daily phone integration is current too. CarPlay and Android Auto run wired or wireless, Bluetooth is 5.3, and Maestro RR/RR2 covers compatible vehicles. The audio section has three pairs of 3V outputs, a 13-band EQ, time alignment, and a three-way crossover. JVC also pushed firmware in May 2026, which tells me more about how this deck will age than a new model number with no support history behind it.

JVC looks to be clearing it out, since Canadian dealers already list it as discontinued, so treat this as a buy-it-while-it's-in-stock pick. I haven't installed or bench-tested this receiver, and its owner-review history is still short. There's no built-in HD Radio, no LDAC, no physical volume control, and the 4 5/16-inch chassis is shorter than the old disc decks without being genuinely shallow. The two-year U.S. warranty and roughly $500 price help offset that. If you want a sharp fixed screen for CarPlay maps, HDMI video while parked, or a proper HD backup camera, the display hardware here is unusually good for the money.

MakeJVC
ModelKW-M795BW
Head Unit SizeDouble-DIN, 4 5/16-in chassis depth
Screen Size6.92 in capacitive anti-glare/anti-fingerprint
Display Resolution1280 x 720
Smartphone IntegrationWired/wireless Apple CarPlay and Android Auto
Preamp Voltage3V, front/rear/sub
Power Output22W x 4 full bandwidth at less than 10% THD
Audio Tuning13-band EQ, time alignment, 3-way crossover
Camera Inputs2 paths; HD rear plus switchable A/V/camera input
Factory IntegrationMaestro RR/RR2 ready, vehicle dependent
Media / ExpansionHDMI, USB, Bluetooth 5.3, SiriusXM-ready; no HD Radio or LDAC
Warranty2 years U.S. through an authorized seller
Typical PriceAround $500
Reasons to buy
  • Native 1280 x 720 panel at a midrange price, not an upscaled 800 x 480.
  • HDMI input and a compatible 720p rear camera make the screen hardware count.
  • Wireless CarPlay and Android Auto with Bluetooth 5.3.
  • Maestro RR/RR2, three-way crossover, and three preout pairs for later upgrades.
  • Two-year warranty plus a 2026 firmware update behind it.
Reasons not to buy
  • No built-in HD Radio or LDAC Bluetooth.
  • 3V outputs trail the 5V premium receivers on a larger amp system.
  • No knob or hard-button strip for tactile control.
  • On clearance, with Canadian dealers listing it as discontinued, so stock may not last.
★ Best for HDMI & Cameras A 10.1-inch floating display with HDMI and three camera inputs ★★★★½4.6

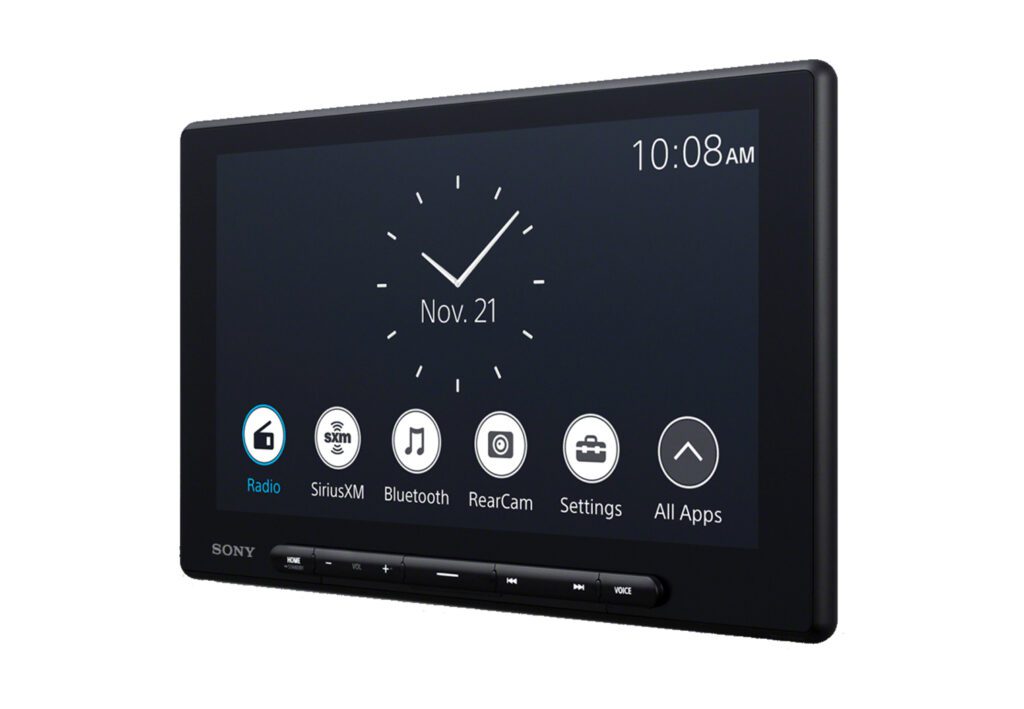

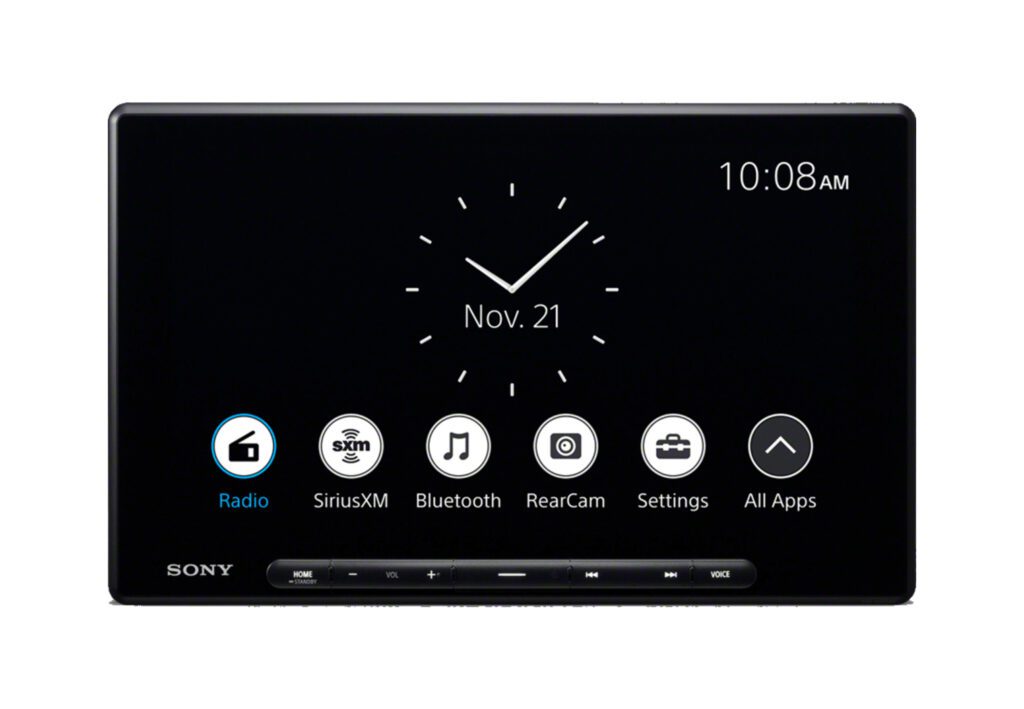

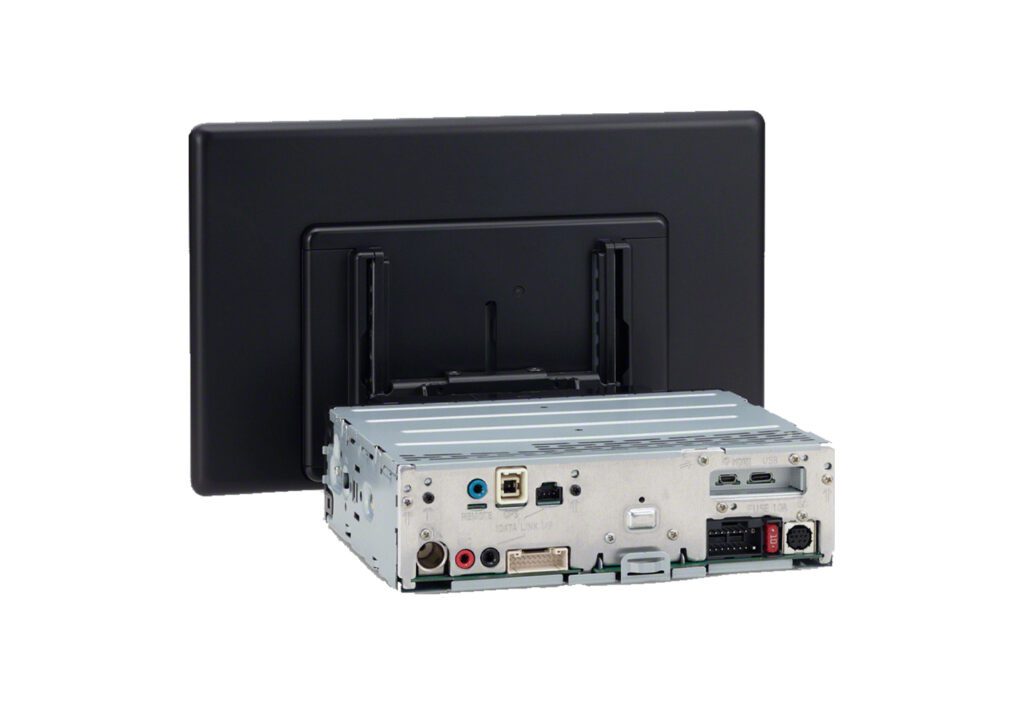

Sony XAV-AX8500 Angle Sony XAV-AX8500 Sony XAV-AX8500 Rear

Sony XAV-AX8500

Single-DIN floating 10.1″ HD · micro-HDMI + 3 cameras · wireless CarPlay/AA

MakeSony
ModelXAV-AX8500
Head Unit SizeSingle-DIN (floating)
Screen Size10.1″ floating

CarAudioNow may earn a commission from retailer links. Brands do not influence the recommendations.

Why I picked it

This is the one I recommend when video is what you're actually buying. I had the AX8500 on my test bench (Sony supplied the unit), played video over its micro-HDMI input from my iPhone through Lightning-to-HDMI adapters, and played files straight from a USB drive. The 10.1-inch 1280 x 720 floating screen makes that video look good, and three camera inputs cover front, rear, and side views. Against the older AX8100, those inputs are the upgrade.

I've installed the AX8000 and AX8100 in several vehicles, and this four-way mount works. You can raise, shift, and tilt the screen so it isn't covering a vent or a switch. My one complaint is that at its closest it still sits a couple of inches off the dash. The anti-glare film helps, but under my bench light it cut the glare rather than eliminating it.

The audio side is solid without being the ES. You get a 14-band EQ, listening-position and time-alignment settings, and 5-volt preouts. If you're choosing between this and the XAV-9500ES, the ES has the parametric EQ and the better audio path, and the AX8500 has HDMI and the extra cameras. Skip it if you want wired CarPlay or Android Auto (both are wireless only here), a volume knob, or an HDMI cable in the box.

MakeSony
ModelXAV-AX8500
Head Unit SizeSingle-DIN (floating)
Screen Size10.1″ floating
Screen Resolution1280 × 720
Screen TypeCapacitive HD
Smartphone IntegrationWireless Apple CarPlay and Android Auto (USB doesn't start them)
HD RadioNo
HDMIYes (micro, rear)
Camera Inputs3 (front/rear/side)
Pre-Outs6-ch, 5V
Power Output20W RMS × 4 (55W peak)
iDatalink MaestroYes
Warranty3 years through Sony or an authorized dealer
Typical PriceAround $800
Reasons to buy
  • 10.1-inch 1280 x 720 floating screen with four-way adjustment to clear vents and switches.
  • Micro-HDMI input and USB video playback, both confirmed on my bench.
  • Three camera inputs covering front, rear, and side views.
  • 14-band EQ, time alignment, and listening-position presets with 5V preouts.
  • Three-year Sony warranty through Sony or an authorized dealer.
Reasons not to buy
  • CarPlay and Android Auto are wireless only, so plugging into USB won't start them.
  • The screen still stands a couple of inches off the dash at its closest setting.
  • Buttons along the bottom edge instead of a volume knob, and no HD Radio tuner.
  • No HDMI cable in the box, and no parametric EQ like the 9500ES gets.
★ Best Premium A flexible 9-inch Halo install with premium expansion ★★★★½4.7

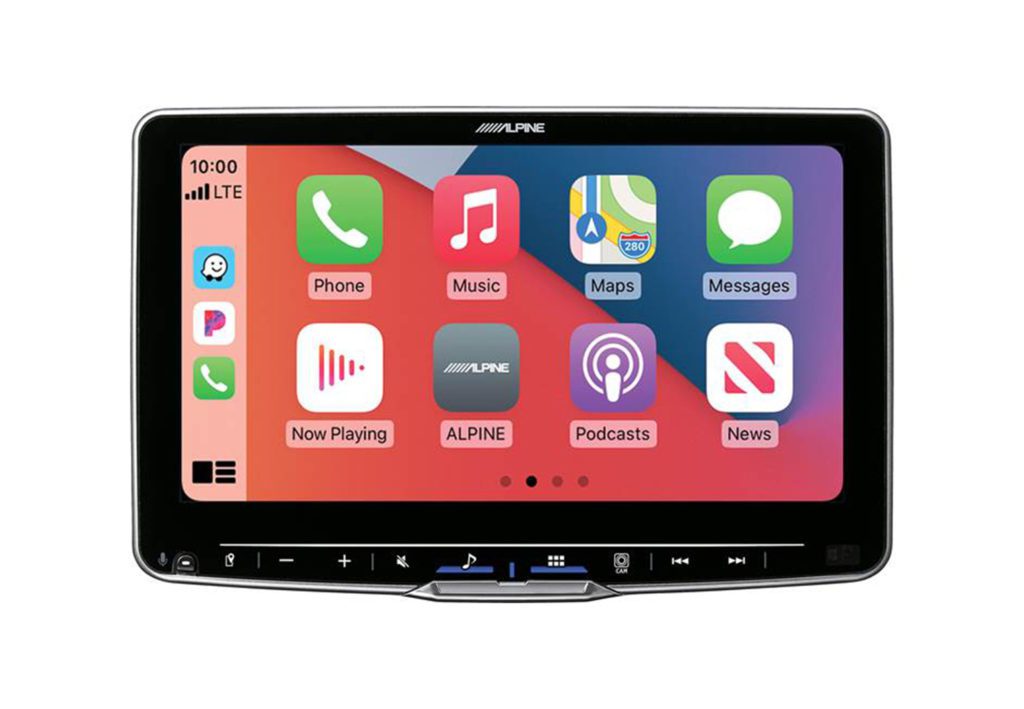

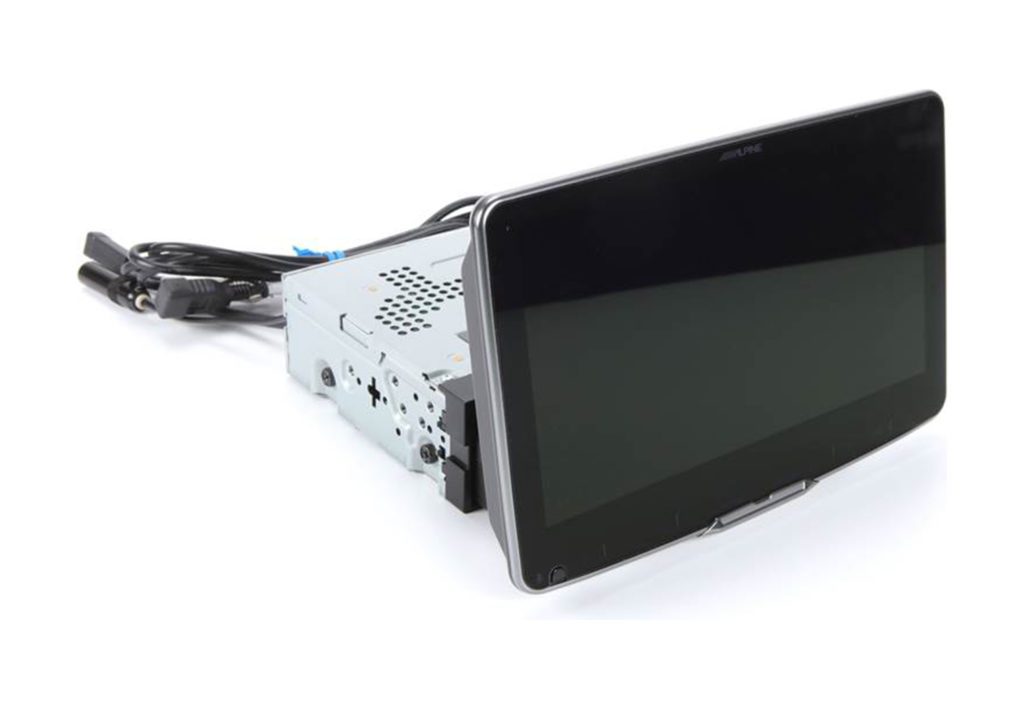

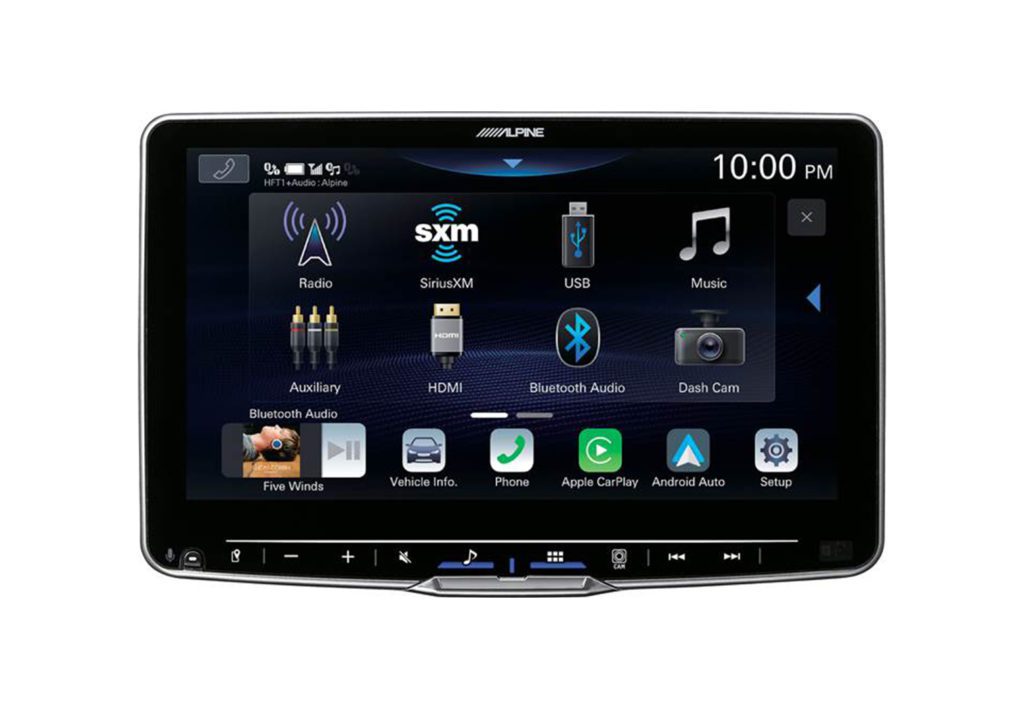

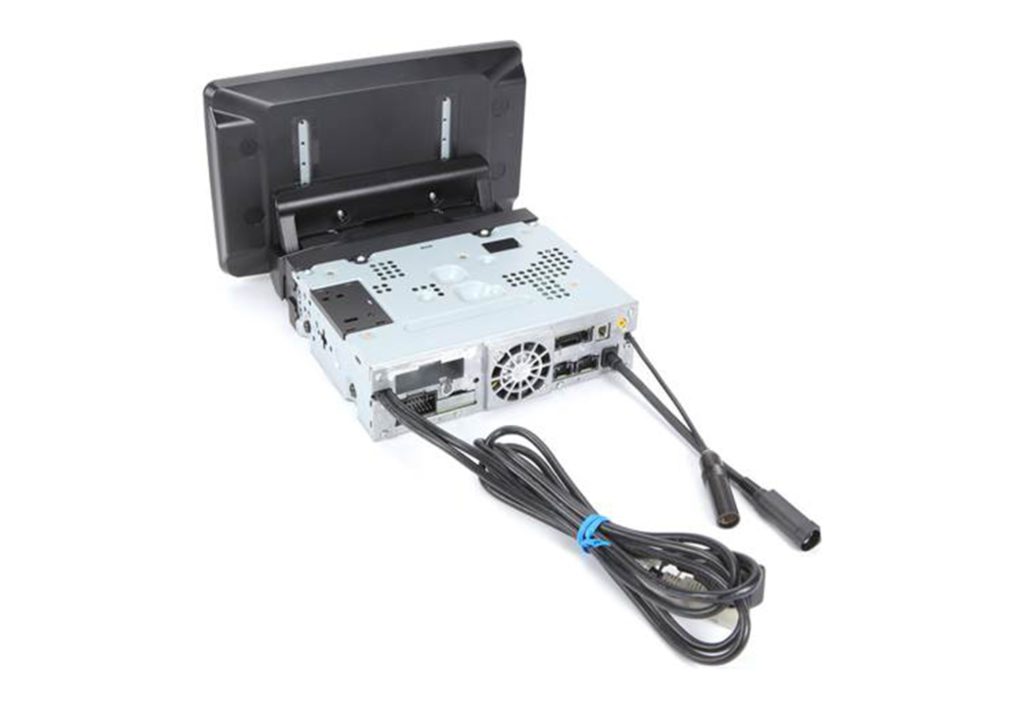

Alpine Halo9 iLX-F509 carplay Alpine Halo9 iLX-F509 Alpine Halo9 iLX-F509 front Alpine Halo9 iLX-F509 angle Alpine Halo9 iLX-F509 rear

Alpine Halo9 iLX-F509

Modular floating 9″ · 1280×720 · wired/wireless CarPlay/AA · HD Radio + Tidal

MakeAlpine
ModelHalo9 iLX-F509 (2023)
Head Unit SizeSingle-DIN (modular floating screen)
Screen Size9″ floating

CarAudioNow may earn a commission from retailer links. Brands do not influence the recommendations.

Why I picked it

If your dash fights big screens, the Halo9 is the way around the problem. Alpine split it into two pieces: a 9-inch floating display and a slim 2-inch single-DIN control box that can live somewhere else entirely. The screen mounts above, below, or beside the box and tilts 45 degrees forward or 20 back. That's how a 9-inch panel ends up working in a dash that would reject a conventional double-DIN outright.

The 2023 iLX-F509 runs 1280 x 720, adds wired and wireless CarPlay and Android Auto, HD Radio, Tidal, and FLAC hi-res playback, and offers an optional wireless volume and subwoofer knob you can mount wherever your hand naturally falls. It's iDatalink Maestro ready, puts out 18 watts RMS per channel, and carries a 6-channel 4V preamp. Two real cautions: it only takes Alpine cameras without an adapter, and the screen angle is set by mounting screws you can't reach once the dash is back together. Get the angle right on the bench, because there's no adjusting it later.

MakeAlpine
ModelHalo9 iLX-F509 (2023)
Head Unit SizeSingle-DIN (modular floating screen)
Screen Size9″ floating
Screen TypeCapacitive
Screen Resolution1280 × 720
Smartphone IntegrationWired & wireless Apple CarPlay / Android Auto
CD/DVDNo built-in CD/DVD transport
AudioHD Radio, Tidal, FLAC hi-res
Power Output18W RMS × 4 (50W peak)
Camera Inputs1 (Alpine cameras without adapter)
iDatalink MaestroYes
Outputs6-ch preamp (4V front/rear/sub)
Reasons to buy
  • Modular design fits a 9-inch screen into dashes that reject a double-DIN.
  • Screen tilts 45 degrees forward and 20 back for the sightline you want.
  • 1280 x 720 panel with wired and wireless CarPlay and Android Auto.
  • HD Radio, Tidal, and FLAC hi-res playback built in.
  • Optional wireless volume and subwoofer knob mounts anywhere in the cabin.
Reasons not to buy
  • Screen angle is fixed at install and can't be changed afterward.
  • Only accepts Alpine cameras without an adapter, and only one input.
  • No CD or DVD transport at all.
  • 18 watts RMS per channel means amplifiers for anything serious.
FIT FIRST

Make sure the receiver and install parts fit your vehicle

Measure the opening, the depth behind it, and the clear space in front of the dash before you choose a screen size. Check vents, climate controls, the shifter path, and your own sightline from the driver's seat. You can also check your dashboard size.

Open the Vehicle Fit Guide →
FAQs

Best Touchscreen & Floating-Screen Car Stereos FAQs

What is the best touchscreen car stereo for most people?+

The Pioneer DMH-WT8000NEX (SPHERA) is my current big-screen overall pick. I had it on my test bench, and its 10.1-inch 720p floating panel, wireless CarPlay, HD Radio, two camera inputs, and PURE Autotuning with the included calibration mic cover what most large-screen buyers need. It also decodes Dolby Atmos through CarPlay. Skip it if you're on Android or need HDMI.

What is the best value touchscreen receiver?+

The JVC KW-M795BW is the value pick around the $500 tier. It uses a sharp 1280 x 720 fixed screen and adds HDMI, an HD rear-camera path, and wireless CarPlay/Android Auto.

Will a floating screen block my vents or controls?+

It can. Measure the full panel at the intended height, depth, and tilt, then check vents, HVAC buttons, gauges, and every shifter position. Use the dashboard-size finder as a starting point, not the final clearance check.

Does every touchscreen stereo have HDMI and multiple camera inputs?+

No. HDMI, camera count, HD-camera support, and video outputs are all model-specific. The AX8500 is the strongest three-camera and HDMI option here. The other picks are solving different screen, value, and installation problems.

Can a touchscreen stereo improve sound quality?+

It can improve source control, preamp signal, crossover options, EQ, and time alignment, but the speakers, installation, amplification, and tune still determine the final result.

Can I keep steering-wheel controls and factory features?+

Often, with the correct interface. Check the exact vehicle, trim, and factory audio package, then read my Maestro explainer before assuming every feature stays.

HOW THIS GUIDE WAS REVIEWED

Why trust this guide?

Kameron Scott

Kameron Scott

Kameron Scott | Founder and Editor | former professional mobile-electronics installer

I founded CarAudioNow after years installing mobile electronics professionally at SC Autosound, and I've installed and evaluated hundreds of car-audio components across a lot of different vehicles since. Anything I installed or bench-tested myself is called out directly on the page. The rest are labeled researched and vetted, checked against current manufacturer documentation, firmware and warranty support, and the installation tradeoffs that actually matter. Brands don't approve my picks or buy placement.

More from Kameron Scott →
