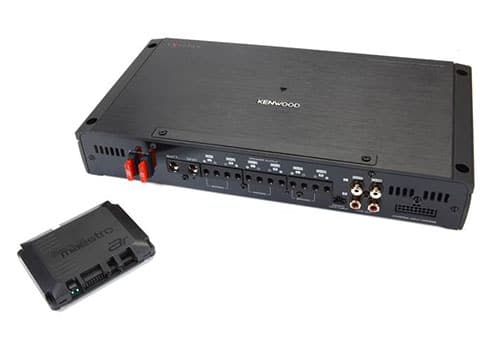

• 6-channel car amplifier with digital signal processing
  • 75 watts RMS x 6 at 4 ohms
  • 100 watts RMS x 6 at 2 ohms
  • 200 watts RMS x 3 bridged at 4 ohms (4-ohm stable in bridged mode)
• CTA-2006 compliant
• Class D amp technology

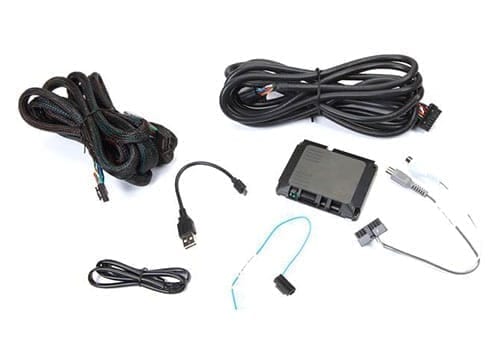

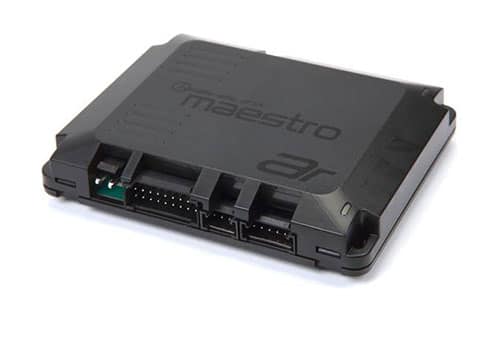

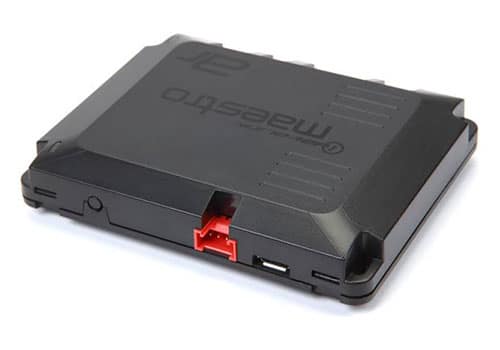

• iDatalink Maestro AR amplifier replacement module included

Digital Signal Processing:

• 10-channel 32-bit 192 KHz digital processor
• all controls and adjustments made via Kenwood DSP Control App via your compatible Bluetooth device
• selectable high- and low-pass filters (31-19,900 Hz) with selectable slopes (6, 12, 18, 24 dB/octave)
• 13-band graphic and 3-band parametric equalizers
• time delay/alignment
• Installer Mode accesses all controls
• User Mode limits functions to selecting EQ and time-alignment presets and subwoofer volume

More Info:

• input options:
  • vehicle specific harness and Maestro AR
  • universal RCA harness (included)
• 4 processed preamp outputs
• fan cooling
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• fuse rating: 40A x 2
• dimensions: 12-5/8″W x 2-1/16″H x 7-1/8″D
